Front doors in the S 9000 system
Fully future-proof
With an installation depth of 82.5 mm and modern five-chamber technology, the new S 9000 front door offers outstanding heat insulation. Also impressive is the new front door's stability. This is accomplished by the large chamber for stiffening elements, shaped steel reinforcements and matching corner reinforcements as well as the firm bond in the area of the ground threshold produced by the vinyl and aluminium parts engaging on two planes.
The S 9000 front door also scores with its weatherboard system solution that upgrades the door elements both functionally and visually. It ensures maximum protection against driving rain and effective sealing by means of insulation profiles at a number of levels in the area of the ground threshold.
The S 9000 front door also scores with its weatherboard system solution that upgrades the door elements both functionally and visually. It ensures maximum protection against driving rain and effective sealing by means of insulation profiles at a number of levels in the area of the ground threshold.
- Outstanding heat insulation thanks to modern five-chamber technology
- Choice of colours
- Effective protection against driving rain
- Suitable for glass and panel thicknesses up to 52 mm (with STV® up to 54 mm)
- Very good statics thanks to large chamber for stiffening elements and matching steel and corner reinforcements
Classic
Even the classic front door model brings a personal touch to your home. This is because there are no constraints when it comes to shapes and colours. Design your front door according to your individual wishes.
Design
The flat face of the door wing in the design version offers maximum aesthetics without compromising security or heat insulation. Not only does this offer greater design freedom, but the lack of bevels also makes your front door easier to clean.

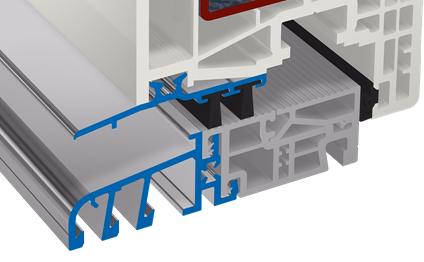

Combined threshold with good heat insulation
The ground threshold for front door and French window elements can be flexibly used in all 74 mm and 83 mm systems for renovations and new builds.
Accesible
A height of just 20 mm guarantees an easy transition from inside to outside, while also meeting the requirements for heat insulation and impermeability.
Front doors in the S 8000 IQ system
Large steel stiffening elements
To achieve the required static properties, GEALAN has arranged the partition bars in the front door from the S 8000 IQ system to allow the insertion of the largest possible stiffening elements. This specific arrangement of partition bars combined with an installation depth of 74 mm enables the use of a steel with 30% higher flexural rigidity. The stiffening elements are pre-milled for faster assembly. The threshold supports already tried and tested in other GEALAN systems also provide an interlocking connection between the front door frame and threshold in the S 8000 IQ profile.
Wide range of accessories
There are also matching weldable corner connectors to greatly increase the torsional rigidity and corner strength of the front door wing. The wide range of accessories allows for the construction of all common front door variants. The front door profile can be fitted with all commercially available hardware and locks, as well as most filling panels of up to a thickness of 46 mm. Front doors from the S 8000 IQ system can be manufactured to open inwards or outwards. The front door profile is available in numerous GEALAN-acrylcolor® colours and (wood grain) decor foils.
Front door and French window thresholds for accessible living
The S 8000 front door and French window threshold is ideal for use in wheelchair-accessible living thanks to its overall height of just 20 mm. The cover plate made from aluminium makes the threshold extremely robust, while the multiple sealing levels and a sealing block with counterpiece integrated into the corner make it extremely airtight.
- Excellent heat insulation – optimal isothermic profile
- Hardware for the French windows and double doors is set flush into the threshold
- All installation types are possible (installation between frames or fitted underneath)
- Threshold compatible with all systems with installation depth of 74 mm or 83 mm
- Good protection against driving rain thanks to a specially shaped outer cover plate as well as multiple sealing levels
- Threshold cover plate covers the mounting screws in the rebate base
